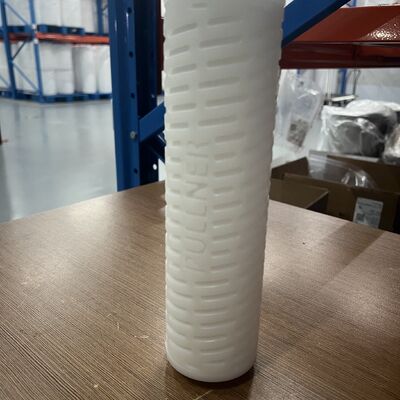

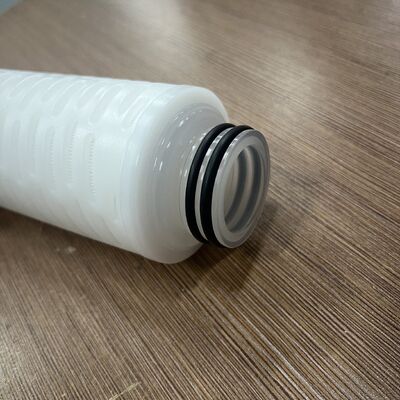

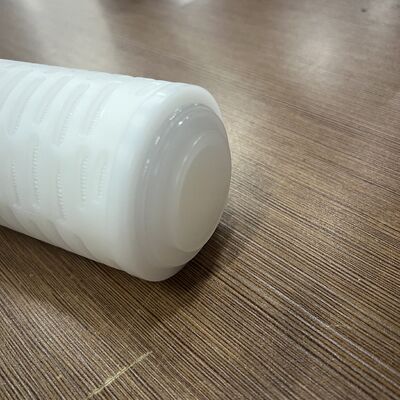

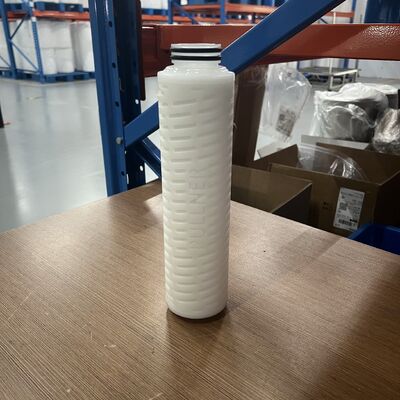

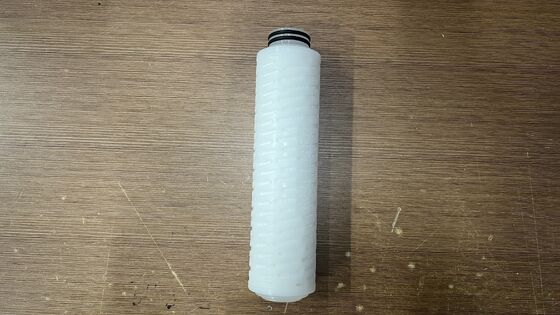

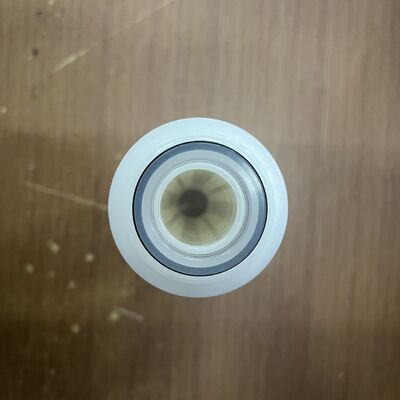

PFL/PFLH Series-Chemical Efficient Filtration Filter Cartridge-PTFE membrane
The PFL series flter cartridge uses PTFE flter membrane, offering excellent chemical compatibility and natural hydrophobicity. Strictly controls metal ion extractables, suitable for most chemicals and organic solvents filtration in the electronic industry.
The PFLH series flter cartridge uses modifed hydrophilic PTFE membrane, which can directly filter polar solutions without pre-wetting, reducing operation time and usage costs. PTFE filter membrane provides excellent particle capture performance, offering up to 99.99% particle interception efficiency.
Features:
- The PFLH variant features hydrophilic PTFE membrane for direct filtration without pre-wetting.
- The filter cartridge uses high-purity materials without any additives and adhesives, ensuring low extractables.
- 100% integrity testing before leaving the factory.
|
Material Constructions
|
|
Filter Media
|
PFL: Hydrophobic PTFE Membrane
PFLH: Modified Hydrophilic PTFE Membrane
|
|
Support/Drainage
|
Polypropylene (PP)
|
|
Cage/Center Core/End Cap
|
Polypropylene (PP)
|
|
Seal Material Options
|
EPDM, Encapsulated FEP
|
|
Max. working pressure differential
|
0.3Mpa
|
|
Max. working temperature
|
80°C
|
|
Series
|
Micron Rating
|
Length
|
End Cap Type
|
Seal Material
|
|
PFL/PFLH
|
0005 = 0.05µm
0010 = 0.1µm
0022 = 0.22µm
0045 = 0.45µm
0100 = 1.0µm
|
05 = 5"
10 = 10"
20 = 20"
30 = 30"
40 = 40"
|
C1 = 226/Spear
C3 = 222/Spear
C5 = 222/Flat
C6 = 226/Flat
C9 = DOE
|
E = EPDM
S = Silicone
V = FKM
P = FEP
|
Company Profile
Shanghai Pullner Filtration Technology Co.,LTD.
Since: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.
China domestic office: Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China.
Global branch and office: UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow).
Certifications
